Rock Machinery VR12TS Tracked Firewood Processor

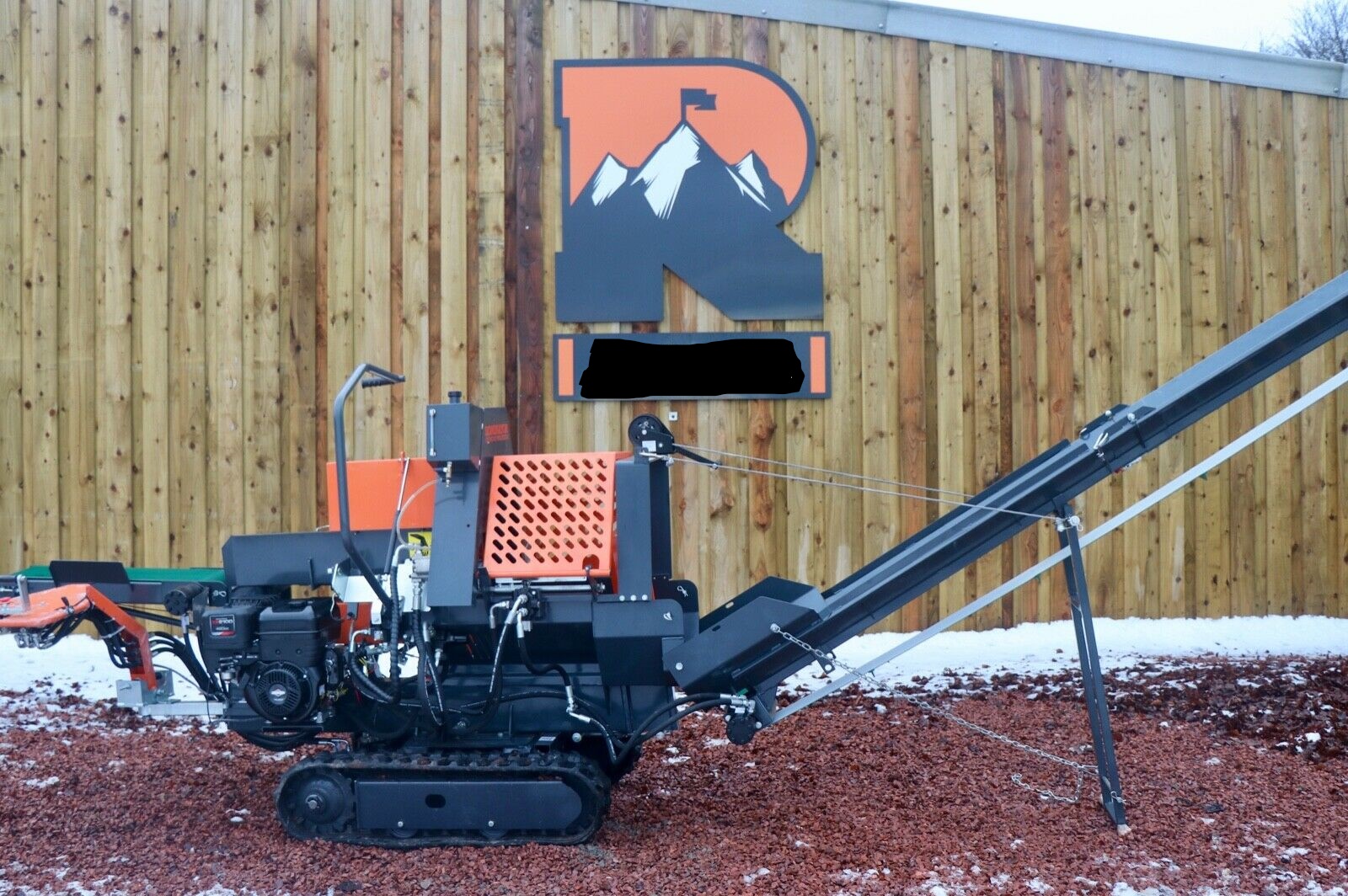

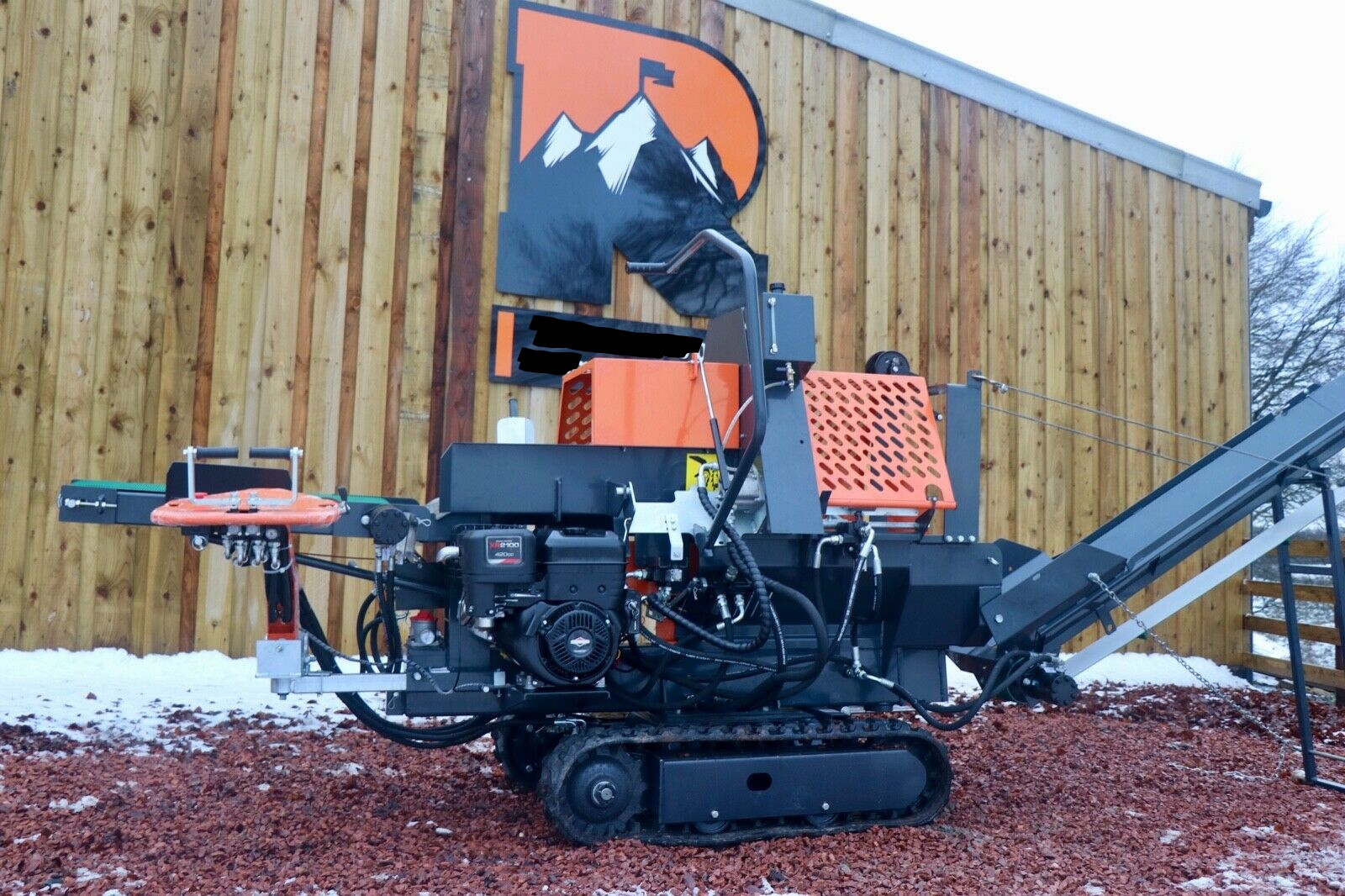

The VR12TS is our 12ton splitting force model with hydraulic tracks. With its modern efficient hydraulic system, the dominator processors are smooth and easy to use and comply with the new (2018) CE safety standard. The VR12TS comes complete with a hydraulic feeder, 3-meter conveyor,18? STIHL Chainsaw blade and Briggs and Stratton engine with electric start as standard. *Model shown in the picture is a prototype and does not have the Briggs engine*

We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and the guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the full-height adjustable 4-way splitting head.

The tracked model features a modified control system with emergency stop, throttle control and track drive controls.

The processor has a 50mm tow hitch for towing around the yard or working area. This unit is not made for road use.

Specifications

  • Engine: 13HP Briggs and Stratton with electric start
  • Splitting Force: 12tons
  • Max Log diameter: 35cm
  • Saw: 18? STHIL blade and STHIL chain
  • Cycle time: 8 Seconds
  • Log conveyor: 3.2 meter, 150mm belt width with winch
  • Knife: 4 way with adjustable height
