Rock Machinery 22-Ton V-Series

22Ton V-Series Log Splitter

The New 2018 V-Series model has arrived!

After many conversations with both customers and professionals, we all agree that the venom 22ton is one of the best log splitters on the market. So we have taken the same robust design and made the V Series ( V stands for value). This model doesn’t have all the features the venom 22ton has but operates the same way and is our entry-level 22ton log splitter.

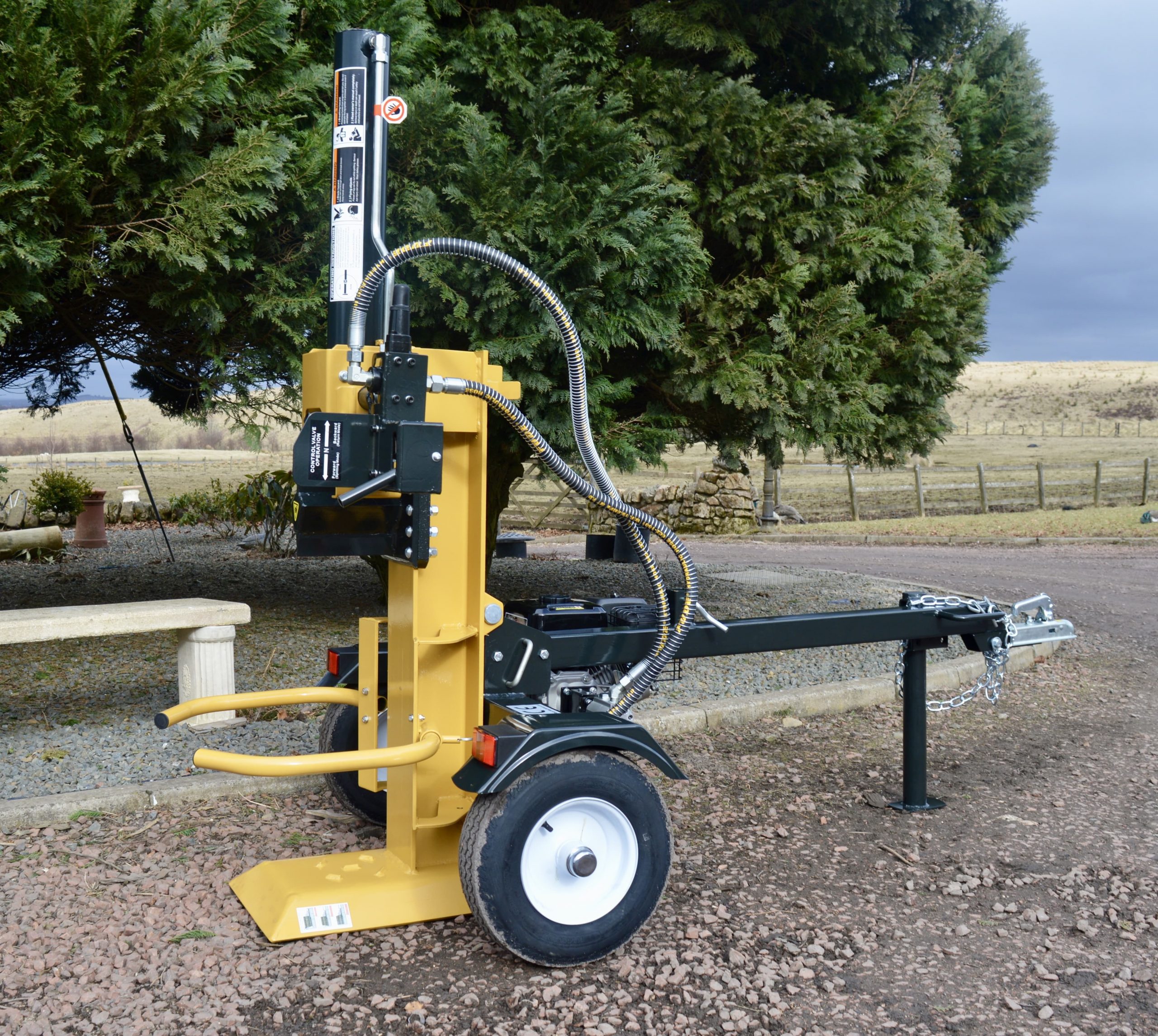

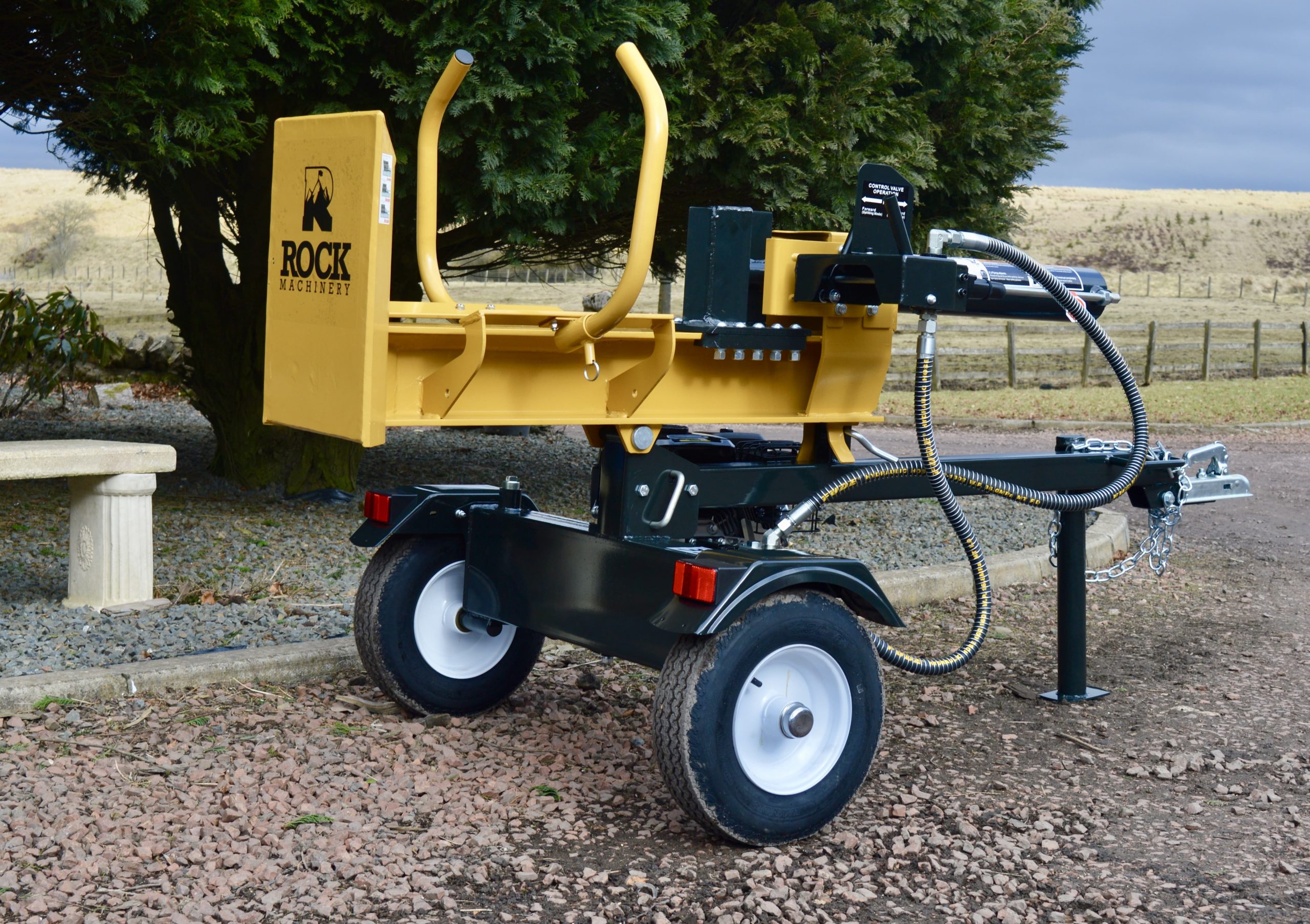

This machine has a 12-second cycle time and can be used horizontally for splitting standard diameter logs and vertically for larger tree rounds that physically cannot be lifted to the horizontal splitting height.

Powered by a 6.5 hp JD engine.

Fitted with a 50mm ball hitch

The simple two-handled ram operation conforms fully with E.U Health and safety regulations and features an auto return ram system that allows the ram to return automatically or be stopped anywhere on the cycle to decrease splitting time.

Specifications

  • 22ton max splitting force
  • 23 max log length
  • 16? tyres ( not for road use )
  • 12-second cycle time
  • 6.5 JD engine
  • 11 gpm two stage pump
  • 7 hardened steel splitting head
  • auto return valve
