Grapple loader T1750 a strong and stable trolley.

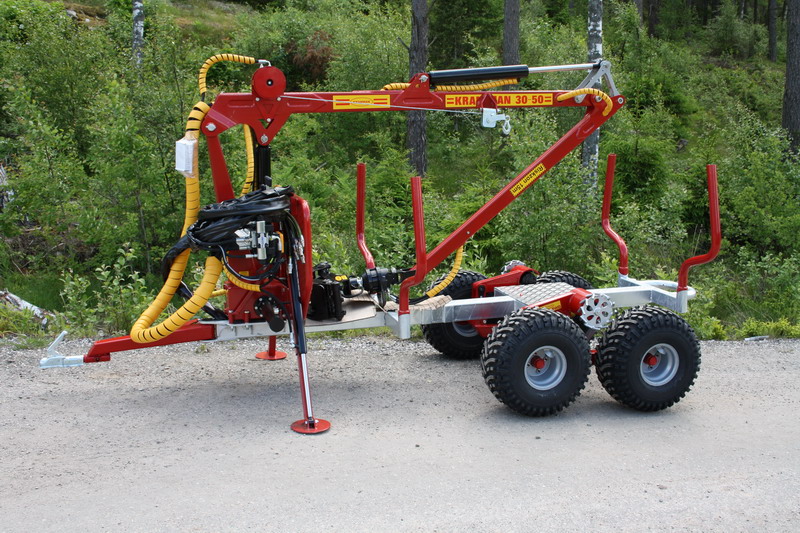

T1750 is a powerful ATV trailer with drive. The trailer is built with a centre beam design 90 * 90 * 4 (100 * 100 * 3). The length of the carriage can be changed to 58 cm, from 158cm to 216 cm between the banks. With the optional double pump, 2 different speeds of the drive can be achieved. The trailer has a Kranman 30-50 crane with a comfort joint that allows the small boom on the crane to have a 180-degree movement. The cylinders and hoses to the drive roller are well protected on the bogie.

The trailer has a disconnection valve for the drive. As soon as you brake with the ATV, the trailer will also stop. The brake valve is optional for the trailer. Then you can adjust the braking action on the trailer so that it does not push on the ATV in slopes. The brake valve is activated automatically when you brake with the ATV.

Kranman has developed its own wheels that are adapted to drive roller. The wheels have extra strong patterns and a tread moulded for maximum grip and minimal friction (Kranman-wheels are optional)
