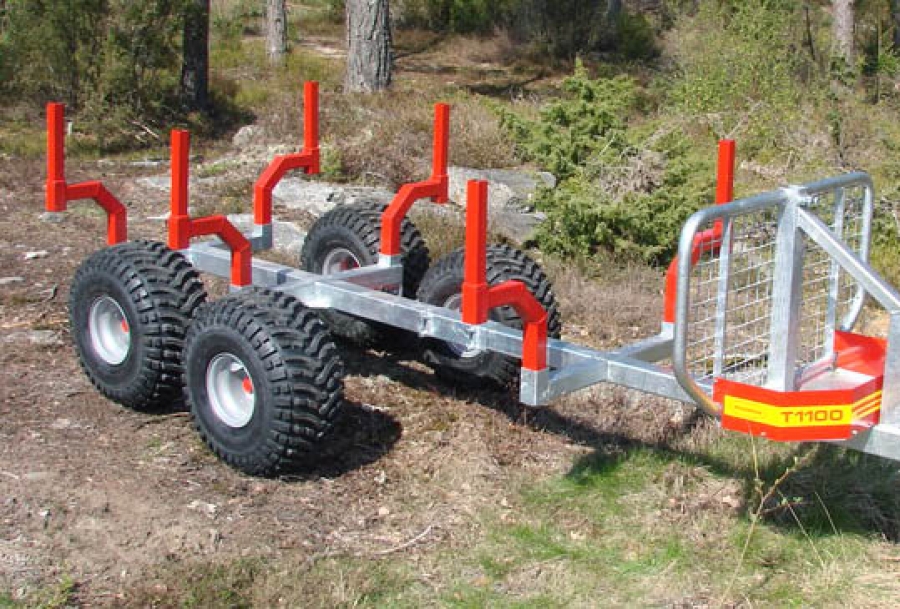

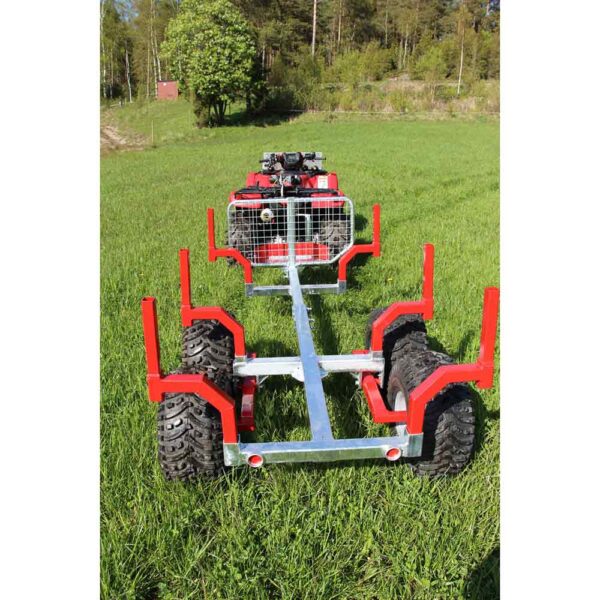

Kranman T1100 Wagon

The Kranman T1100 has 3 cargo banks with divisible poles, and a practical box in front of the gate. The bogie has a large movement schedule which means that the trolley climbs easily in even difficult terrain. The same trolley also has KP1110 and KP1120.

Specifications

  • Facts T1100
  • Weight 165 kg
  • Length 3000-4200 mm
  • Width 1300 mm
  • Ground clearance 390 mm
  • Height – Gate 600 mm
  • Height -Banks 550 mm
  • Max load 1100 kg
  • Centre beam rear 80x80x3 mm
  • Center beam front 70x70x4 mm
  • Surface treatment chassis Hot
  • galvanized Bogie Lubricable bronze bearing
  • Banks 3 divisions
  • 1200 divisible mm
  • Towing glove 50mm Lubricable, adjustable
  • Tires 22-11-8 6 bearings (PLY)
