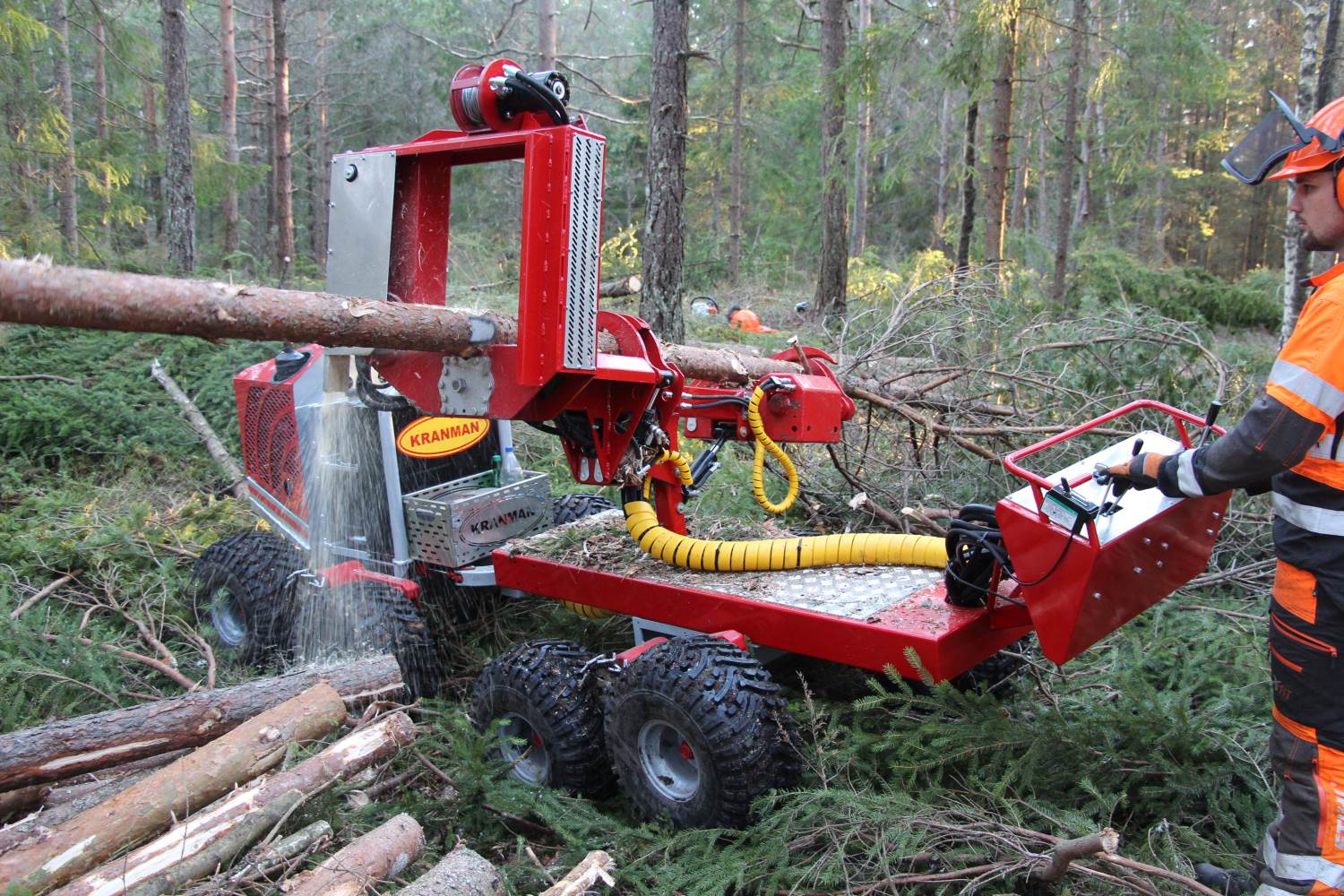

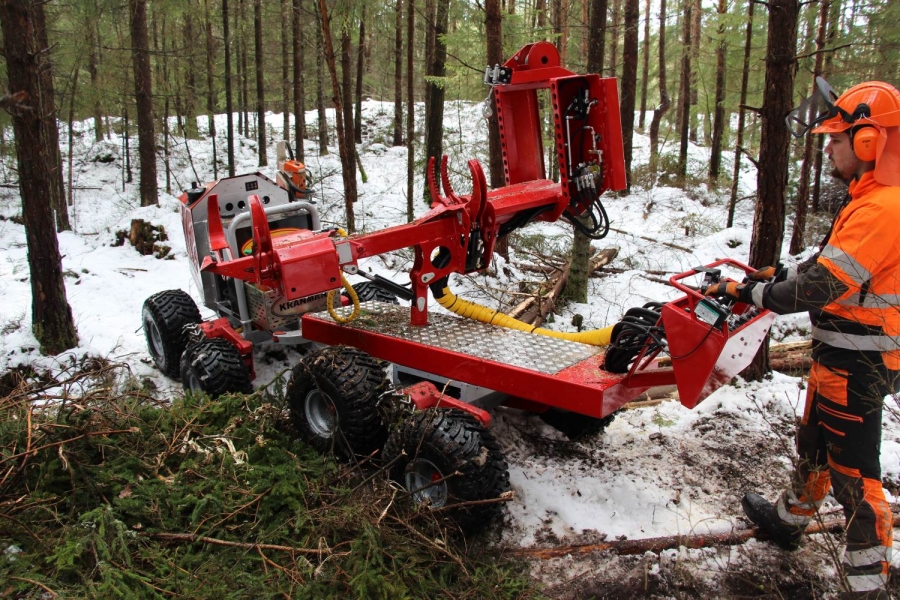

Kranman P25 Processor

After a series of tests of different concepts, Kranman is releasing the final version of the processor P25. It is a stand-thinning processor with well-proven solutions for the most effective thinning in terms of land damage, fuel consumption, personal workload and not in the least a good final result.

Processor and articulated carrier with motor and drive on all eight wheels. This allows the processor to change position very easily without having to jump in and out of the machine. This will contribute to obtaining a good flow in the work, as we have studied in our many tests.

Available in several options:

Processor P25B Petrol Basic

Processor P25B Petrol Comfort. Large wheels; 300 / 65-12 with 8 layers of rubber, Toolbox, Extra saw holder

Processor P25B Petrol Pro. Large wheels; 300 / 65-12 with 8 layers of rubber, Lighting, 6 LED lamps inc post, Toolbox, Extra saw holder, Tank Gauge

Processor P25D Diesel Comfort. Kubota 902D 3-cylinder diesel engine, 23 hp, Large wheels; 300 / 65-12 with 8 layers of rubber, Extra saw holder

Processor P25D Diesel Pro. Kubota 902D 3-cylinder diesel engine, 23 hp, Large wheels; 300 / 65-12 with 8 layers of rubber, Lighting, 6 LED lamps inc post, Toolbox, Extra saw holder, Tank gauge, 230V engine heater

Processor P25 for the trolley.

Specifications

  • The standard process is powered by a HondaGX 630 gasoline engine.
  • Information processor
  • Stroke: 1020 mm
  • Maxtree size: 250 mm
  • Operating Pressure Hydraulics: 160+170 bar
  • The flow of oil: 60+20 l/min
  • Saw bar: 15inch
  • WeightProcessor: 425 kg
  • Weight carriers with processor: 1070kg
  • Diameter inch wire: 6 mm
  • PressPowerdelimbing: 3,1 ton
  • Width: 143 cm
  • Length: 410 cm
  • Height: 170 cm
  • Working angle: 300degrees
  • Maximum traction winch: 1000 kg
  • Average SpeedStep feeder: 0,75 cm/sek
  • Engine output petrol: 15,5 kW
  • Engine outputdiesel: 18 kw
  • Fuel tank: 14ltr
