Kranman Bison 10000 6WD

Bison 10000 is a versatile mini forwarder that is very easy to drive with 35 ground clearance throughout the machine. The machine is hydrostatic, which means that it has a drive pedal which regulates the speed. Releasing the pedal, the machine stops and stands still until you press the pedal again.

The direction forward or back is easily selected with a button on the side of the chair. With a Bison 10000, you will do a very effective job. You can sit back and drive the machine on a working RPM, release the pedal, load the log and press the pedal and you’re off. This is without having to drop down the machine at low RPM, put it in neutral or pull the handbrake.

Bison 10000 is very smooth because the middle of the machine is located almost exactly in between the front and rear wheels. This means that the rear of the machine runs almost on the same track as the front wheels.

Despite its narrow width of only 155 cm, the Bison 10000 is very stable. This is thanks to its low centre of gravity. Bison 10000 has the high and low gear (7 and 3.5 km / h). Low gear and high gear with 6-wheel drive.Transport gear is optional 14 km / h.

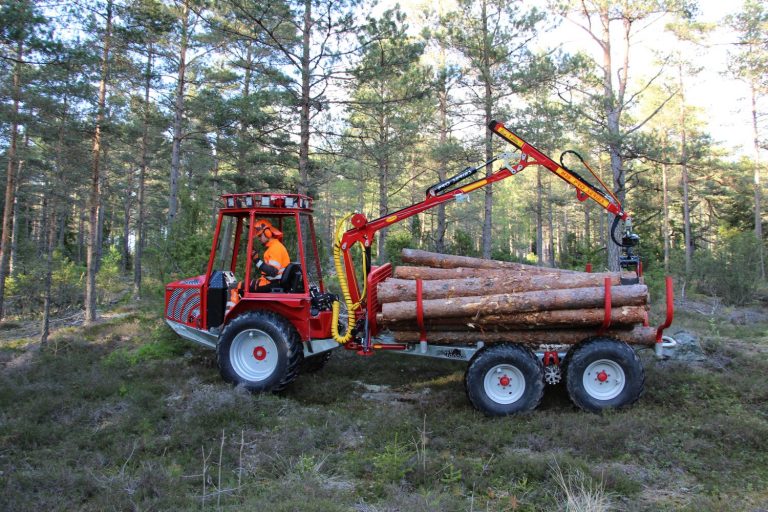

Bison 10000 6wd

Specifications

  • Standard equipment
  • Full galvanized chassis
  • Roof with branch deflector and light bar
  • Front window
  • 18 kW Kubota diesel
  • Fully hydraulic drive 6WD
  • Variable high / low gear
  • 6WDon high and low gear
  • Crane K330 3.3m
  • Work Light with 4 LED headlights
  • Extra hydraulic for example. dump-trucks
  • Wheelsfront400/55-22.5
  • Rear wheels12,5/80-15,3″
  • Fire extinguisher6kg
  • 12V outlet
  • 4load banks with 4Poles
  • Engine
  • Manufacturer: Kubota diesel 24hk
  • Max RPM: 2.800 rpm
  • Transmission
  • Transmission: Hydrostatically
  • Brake systems
  • Front wheels: Hydraulicdisc brakes
  • Rear wheels: Hydraulic
  • Electric-system
  • Volt: 12v
  • Battery: 45Ah
  • Generator: 40A
  • Lighting: 4st 15W LED,optional12st 15W LED
  • Specifications
  • Max speed:
  • Standard: 14 km/h, 7 km/h
  • Max load: 2500kg
  • Front wheels: 400/55-22.5″ 14 ply
  • Rear wheels: 12,5/80-15,3″ 12 ply
  • Fuel tank: 20 L
  • Weight: 1520kg
  • DimensionsLxWxH: 6.100×1.550×2.300
