J Mac JMW1000

Specifications

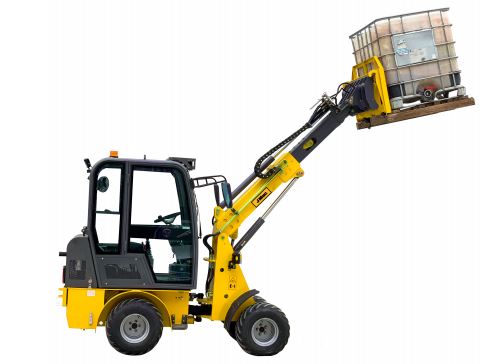

  • MW1000 Telescopic loader with standard bucket and pallet forks.
  • Yanmar 3TNV88-BSSY engine
  • Italy Hydrostatic Driving System
  • Inching Function
  • Quick Hitch
  • 26×12-12 Agricultural Tyres
  • Adjustable Steering Wheel
  • Electronic Joystick
  • Floating Function
  • Pressure Checking System
  • Specifications:
  • Performance Parameters
  • Rated Load 900kg
  • Bucket Capacity 0.3m3
  • Lifting Height of main boom 2959mm
  • Dumping Height of main boom( dumping angle 45) 2051mm
  • Dumping reach of main boom 587mm
  • Max. Loading capacity of main boom 1000kg
  • Lifting height of small boom 3526mm
  • Dumping height of small boom(dumping angle 45) 2618mm
  • Dumping reach of small boom 1085mm
  • Max. Loding capacity of small boom 600kg
  • Max. Speed(F1/R1) 12km/h
  • Max. Traction force 16.66KN
  • Max. Breakout Force 15KN
  • Digging Deep 65mm
  • Max. Gradeability 25
  • Max. Turning angle 35
  • Dimension and weight
  • Overall length( bucket on ground position) 3820mm
  • Overall width 1260mm
  • Overall Height 2310mm
  • Wheel base 1507mm
  • Tread 890mm
  • Min. Ground clearance 220mm
  • Net weight 2100kg
  • Engine
  • Engine model Yanmar 3TNV88F-ESSY
  • Type Water cooled
  • Rated Power 19.2kw
  • Rated Speed 2200r/min
  • Max. Torque 98.7N.m
  • Speed at Max. Torque 1320r/min
  • Number of cylinders 3
  • Bore & stroke 88*90
  • displacement 1.642L
  • Rated fuel consumption ?230
